12 Months All Parts Warranty!

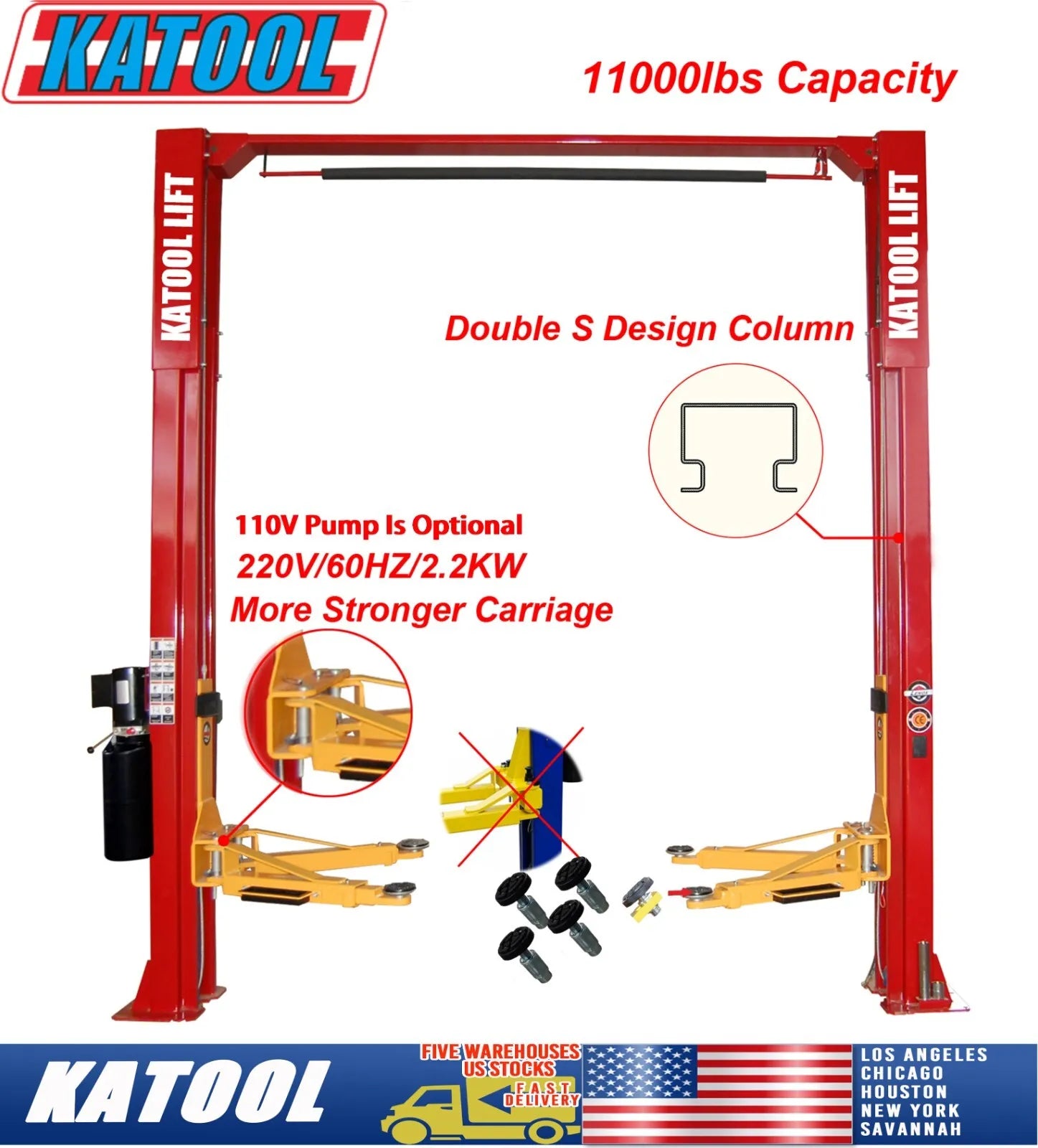

2 Post Lift KT-M110
|

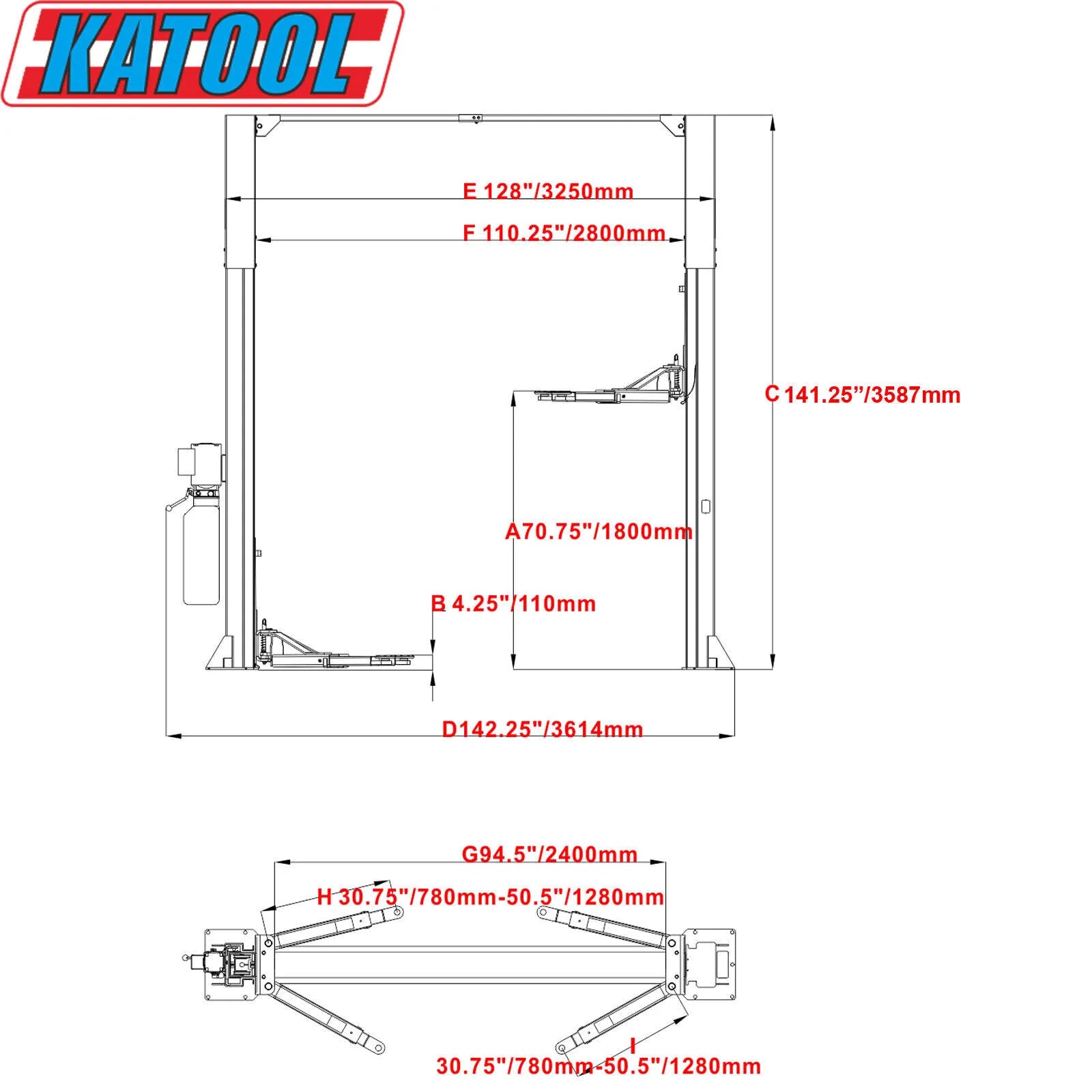

Lifting Capacity
|
11000lbs.(5000KG)
|
|
Max. Lifting Height
|
70.75"/1800mm
|
|
Min. Height
|
4.25"/110mm
|
|
Height Overall
|
141.25"/3587mm
|
|
Width Overall
|
142.25"/3614mm
|
|
Outside Column
|
128"/3250mm
|
|
Inside Column
|
110.25"/2800mm
|
|
Dirve-Thru Clearance
|
94.5"/2400mm
|
|
Front Arm Reach(Min)
|
30.75"/780mm(2 stages)
|
|
Front Arm Reach (Max)
|
50.5"/1280mm(2 stages)
|
|
Rear Arm Reach(Min)
|
30.75"/780mm(2 stages)
|
|
Rear Arm Reach(Max)
|
50.5"/1280mm(2 stages)
|
|
Motor
|
220VAC/60HZ/1PH/2.2KW
|
|
Net Weight
|
620KG
|
-11000lbs lifting capacity
-CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.
-Symmetric clearfloor design
-Manual safety release from two side.

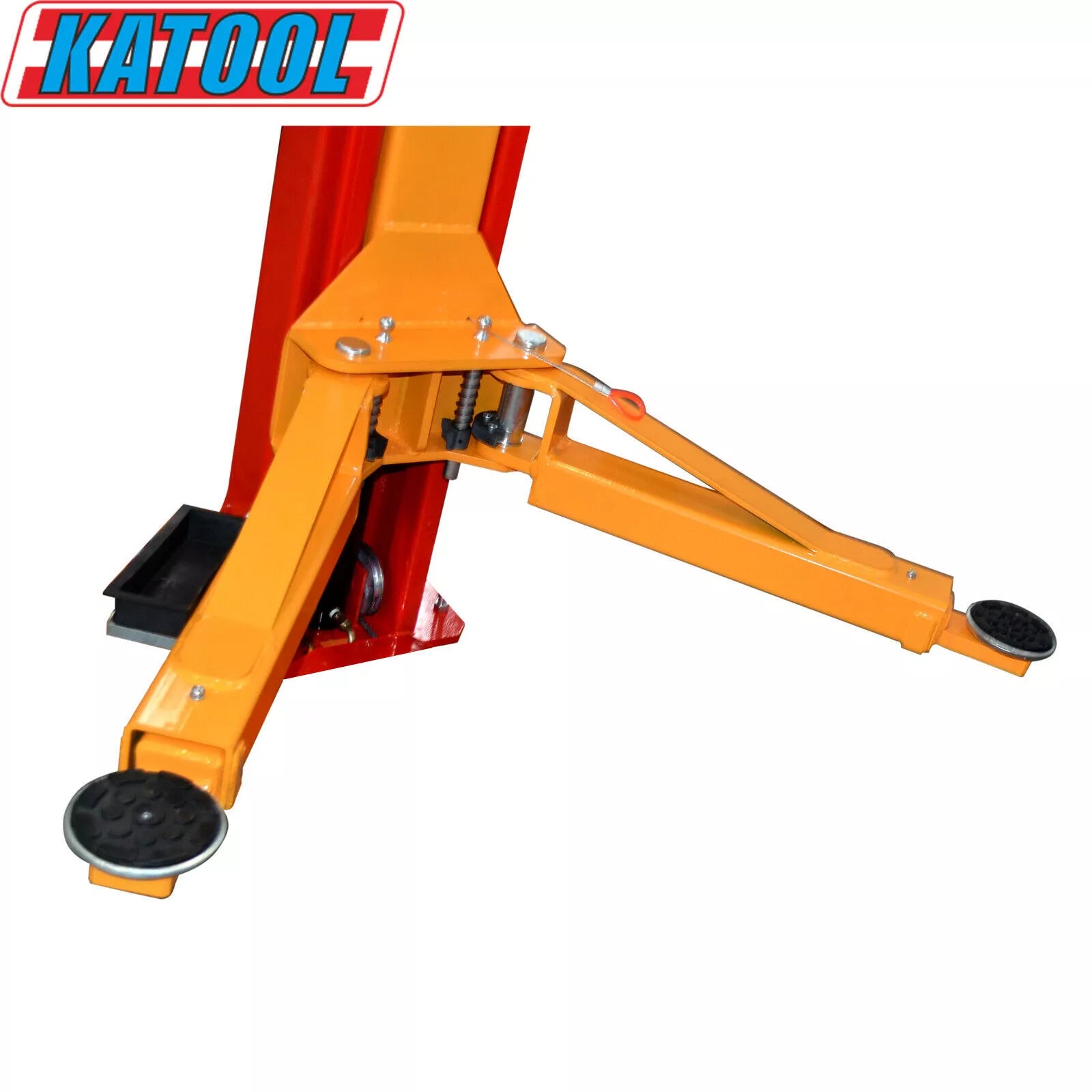

-Symmetric arm
-Dual Hydraulic Chain-Drive Cylinders
-Robber pad door opening protection.
-Screw-on pad and extension support adaptor sets +100mm
-Added overhead safety shutoff bar
-Feet-protection safety guardrails with tools box.
-Top level hydraulic system with 220V/60HZ/1PH
