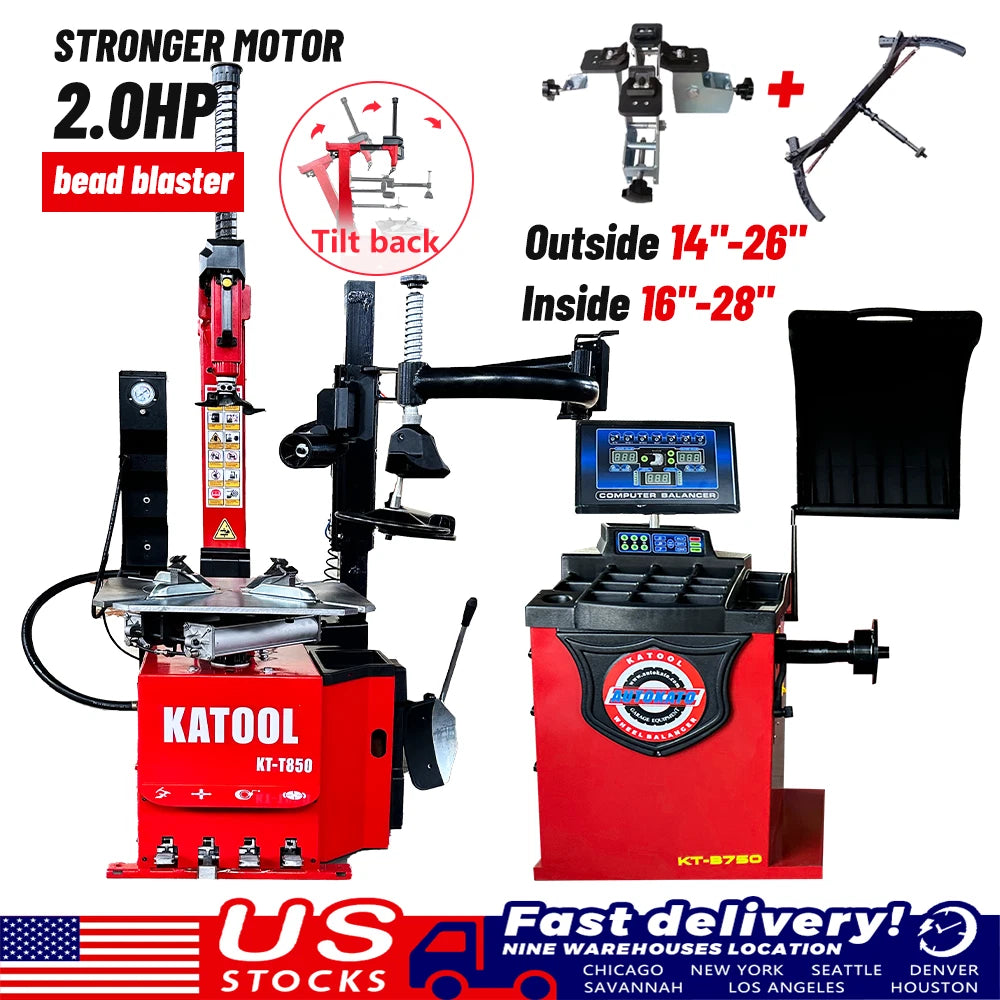

Max Wheel Diameter :
|
47"/1200mm
|
|
Max Wheel Width :
|
15"/380mm
|
|

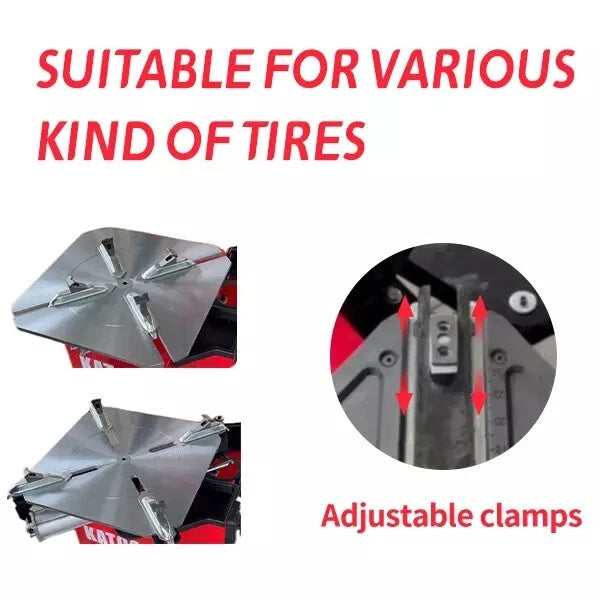

Outside Clamp:
|
14"-26"
|
|
Inside Clamp :
|
16"-28"
|
|
Power Supply:
|
110V 1PH
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.8r/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
340KG / 750 lbs
|

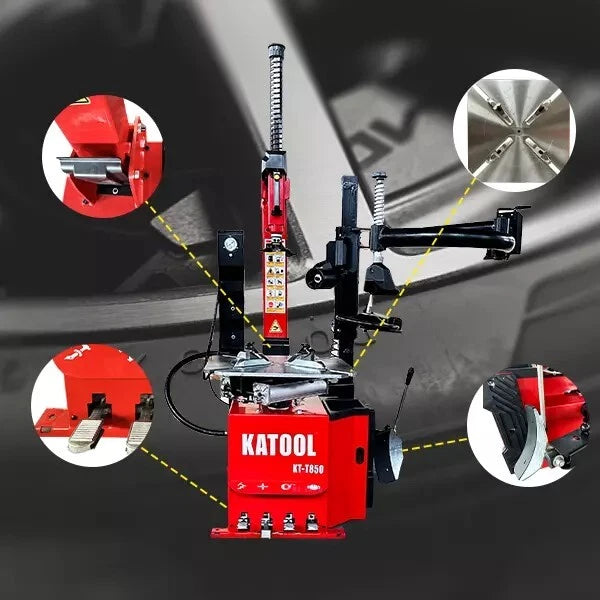

-- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle,and take with plastic cover for protect rim.
-- With high quality spade cover, effective prevent damage rim.

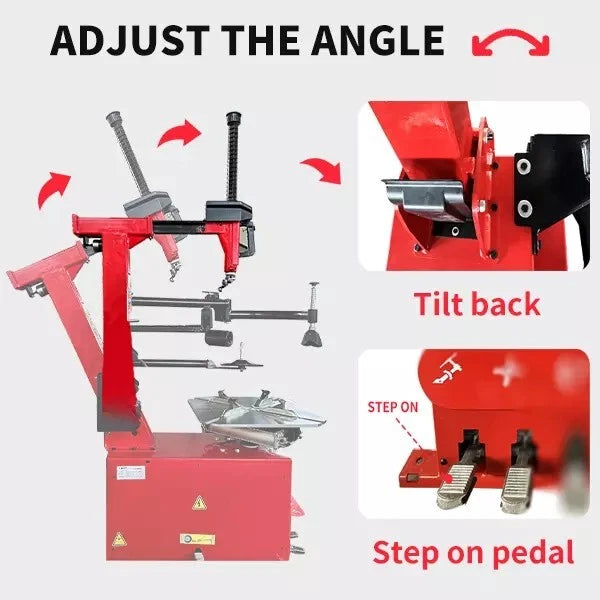

-- Pull type pedal control system, convenience for changing and maintenance.
-- Pull type pedal control system, convenience for changing and maintenance.
-- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.

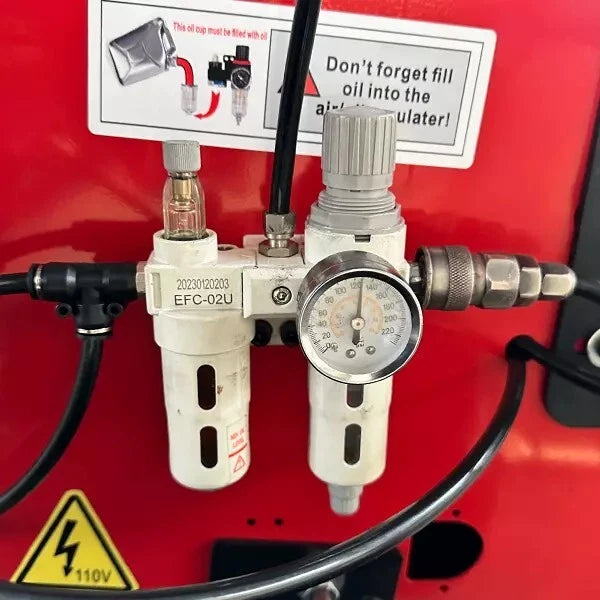

-- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
-- For North America region used 110V / 1ph / 2.0HP motor,more strong power and high efficiency working

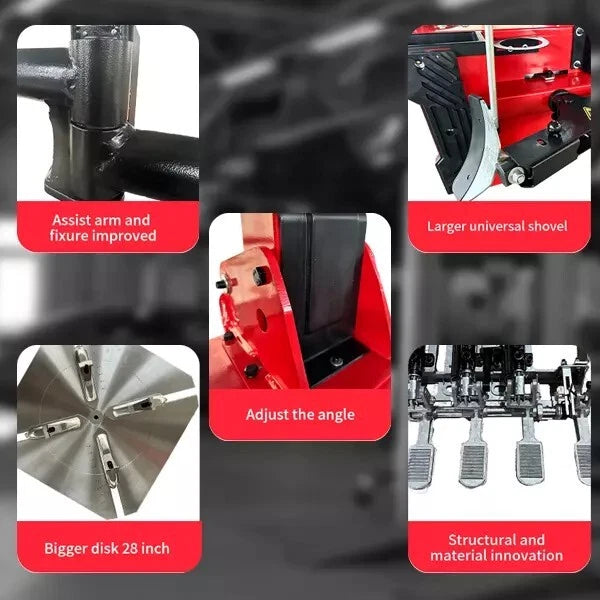

-- Assist arms
-- Bead blast seater
-- φ200mm Aluminium bead breaker cylinder
Car Wheel Balancer KT-B760:
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
±1g
|
|
Measuring Time:
|
7S
|
-Automatic measurement ruler for auto input A and D values.
-The body use 3mm thickness steel, high strength, solid welding, few vibration.
-All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision.
-Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.
-The φ36mm shaft thread is by quenching treatment, high strength.
-Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
-The computer board adopt advanced welding technology, moistureproof, dustproof and anti-static electricity, more longer life.
-Various balance mode, according different rim for different balance mode, make the balance effect more precision.
-Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters,operation more easy.
-Unit selection(Ounce/Gram, MM/Inch).
-High quality integration power board, working stable and reliable.
